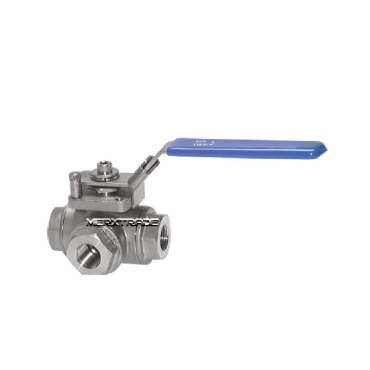

Ball valve 3 way with lever stainless steel/PTFE thread BSPP L-bore (1/4" up to 4")
| Model: | 3 way L bore | Material body: | Stainless steel 1.4408(> G 2": 1.4307) |
| Connection: | Thread BSPP ISO 7-1 Rp | Material Ball: | Stainless steel 1.4408(> G 2": 1.4307) |
| Pressure: | 63/40/25/16 bar | Material seat: | PTFE |
| Temperature: | -20°C / +200°C | Operation: | Lever with locking device |
| Heavy line |
| ISO 5211 mounting pad |
| Use: Chemical and pharmaceutical industries, petrochemical industries, hydraulic installation, compressed air |
The shown images can differ from the actual product. Technical data & prices are subjected to be changed without prior notice.
| SKU: | MXT-78ES0300 |
| Body material | StainlessSteel-1.4408-316. |
| Disc / Ball / Wedge | StainlessSteel-1.4408-316 |
| Seat | PTFE |
